Self-furring Expanded Dimple Metal Lath /diamond metal lath/diamond metal lath with V-grooves. 1.75lbs/2.5lbs/3.4lbs

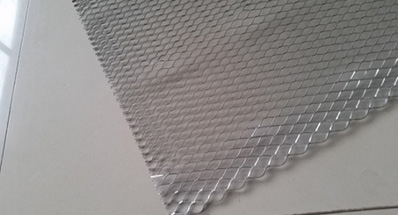

Diamond metal lath
Specification
· Material (conforming to ASTM A653/A653M):
o G60 hot-dipped galvanized steel, G90 is available upon special request;
o G60 cold-rolled galvanized steel;
o Zinc alloy and vinyl coated.
· Weights (per sq. yd.):
o 1.75 lbs./sq. yd.;
o 2.5 lbs./sq. yd.;
o 3.4 lbs./sq. yd.
· Mesh size: 5/16" × 9/16", 6/16" (8.3 mm) × 3/4" (17.7 mm).
· Thickness:
o Standard diamond metal lath: 1/8".
o Depth of dimples and grooves: 1/4".
o Overall depth of the lath: 5/16" (7.9 mm).
· Sheet size: 27" × 96".
· Number of grooves per sheet: 5.
· Weights per bundle:
o 35 lbs./bdl (for 1.75 lbs./sq. yd.);
o 50 lbs./bdl (for 2.5 lbs./sq. yd.);
o 68 lbs./bdl (for 3.4 lbs./sq. yd.).

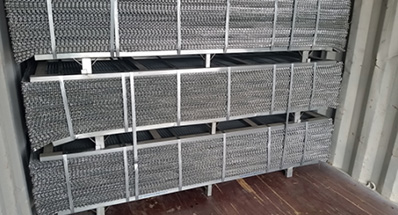

· Packaging: 10 sheet (20 sq.yds) per bundle, 50 bundles/lift.
Application:

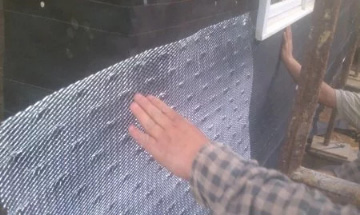

· Dimpled and v-grooved diamond metal lath is generally used in applications over solid surfaces such as gypsum, concrete and wood sheathing block.
· 5/16" × 9/16" for common interior plastering, 3/8" × 3/4" for stucco work or as a support for loose fill rock wool or similar insulation.
· 1.75 lbs./sq. yd. lath is not recommended for open frame use other than in tested proprietary one coat systems.
