Heavy hot dipped galvanized fence panel is used with hot dipped galvanized concertina razor wire by Y post as a security wall.
H.D.G. Fence Panel & Concertina Razor Wire
· Fence panel.
· Wire diameter: 4.0 mm.
· Opening size: 12.5 mm × 75 mm.
· Panel size: height 2650 mm × width 2100 mm.
· Surface treatment: heavy hot dipped galvanized.
· Wire tensile strength: 83000 PSI or 572 MPa.
· Panel frame.
· Angle steel bar: 60 × 60 × 6 mm.
· Welded frame: height 2650 mm × width 2100 mm.
· Steel plate (pre-drilled, heavy hot dipped galvanized): 8 × 50 × 60.
· Steel bar - pre-drilled, heavy hot dipped galvanized.
· Vertical steel bar: 30 × 4 × 2650 mm.
· Horizontal steel bar: 30 × 4 × 2100 mm.
· Y post.
· Y cranck arm: 60 × 60 × 6 mm.
· Arm height: 355 mm, welded on top of main post.
· Pre-drilled, hot dipped galvanized pipe: 3" SCH 40, length 3000 mm.
· Pre-drilled, heavy hot dipped galvanized cap plate 6 mm on top.
· Concertina razor wire.
· Blade type: BTO-22.
· Finish: hot dipped galvanized.
· Outside diameter: 400 mm, with steel clips and 11.5 m per roll.
· Hot dipped galvanized round bar, bar diameter: 12 mm, bar length: 150 mm.
· Double leaf swing gate.
· Post pipe: 6" sch 40, height: 4.15 m, width: 6 m.
· Frame: 60 × 60 × 6 mm.
· Mesh counts: 385 mesh.
· Panel finish: heavy hot dipped galvanized.
· Accessories
· Tie wire: hot dipped galvanized, 2 mm wire diameter.
· Tension wire, hot dipped galvanized, 4 mm wire diameter, 10800 m.
· Screw-1: M8 × 30 mm for fixed panel onto frame.
· Screw-2: M16 × 50 mm for fixed panel frame onto the post.

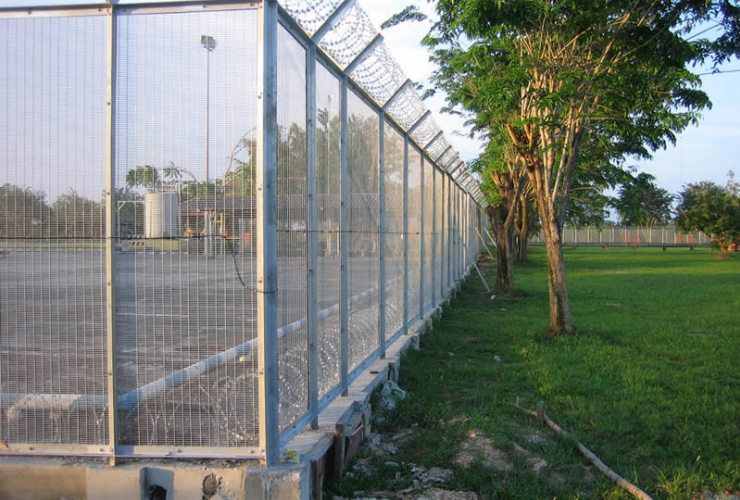

Welded mesh fence with concertina razor wire as security fence.
