Spot-Welded Mesh for Reinforcing Concrete of Pipeline

Spot-welded mesh made of galvanized low-carbon steel wire to reinforce the concrete of pipeline with ASTM A641-91 zinc coating,wire diameter 2/2.3mm.

Galvanized Welded Mesh for Concrete of Pipeline Reinforcing

Spot-welded mesh made of galvanized low-carbon steel wire to reinforce the concrete of pipeline with the following specifications:

· Roll width: 19 cm.

· Roll length: 140 cm.

· Longitudinal wire diameter: 2.3 mm.

· Transversal wire diameter: 2 mm.

· Longitudinal step: 67 mm.

· Transversal step: 25.4 mm.

· Regular zinc coating class: ASTM A641 - 91.

· Zinc coating mass determination is based on standard ASTM A90 (section 8).

· Reliability of adhesion of coating based on standard ASTM A641-91 (section 9).

· Shear stress between the longitudinal and transversal welded wire according to the standard ASTM A185-01 (section 4 and 7).

· The yield and ultimate stress according to standard ASTM A82-01.

6 gauge galvanized after welded square wire mesh 1. 6 × 6 square mesh, 2. 4 × 4 square mesh, 3. 2 × 2 square mesh.

Hot dipped galvanized after welding

· 2400 × 1200 × 2.5 squares of 25 × 25 ml 200 units 1 pallet.

· 2000 × 1200 × 2.5 squares of 25 × 25 ml 200 units 1 pallet.

· 2000 × 900 × 2.5 squares of 25 × 25 ml 200 units 1 pallet.

· 3000 × 1200 × 2.5 squares of 25 × 25 ml 50 units 1 pallet.

· 3000 × 2400 × 2.5 squares of 25 × 25 ml 50 units (nude packing).

· 2400 × 1200 × 2.5 squares of 12.5 × 12.5 ml units of 100.

· 2400 × 1200 × 2.5 rectangle of 25 × 12.5 ml units of 100.

· 2400 × 1200 × 2.5 squares of 20 × 20 ml units of 50.

Hot dipped galv. welded wire mesh (galv. after welding) 1/2" × BWG 21 × 3' × 25 mtr. - Weight 8 kg/roll.

Hot dipped galv. welded wire mesh (galv. before welding) 1/2" × BWG 21 × 3' × 25mtr. - Weight 8 kg/roll.

HDG welded wire for poultry and house hold uses.

· Square hdg welded wire before weaving

· 1/2" × 1/2" × 3' × 100 ft × 20 gauge.

· 1/2" × 4' × 100 ft × 20 gauge.

· HDG hexagonal wire 1/2" × 4' × 100 ft roll × 21 gauge.

· Same as above as above × 20 gauge.

· Square HDG welded wire before weaving.

· 1/2" × 1" × 100 ft roll × 16 gauge.

· 1" × 1" × as above × 16 gauge.

· 3/4" × 3/4" as above. × 16 gauge.

Welded wire mesh panel (hot dip galvanized after welding):

· 2.5 × 2.5 cm × 3 mm × 1 × 2 m × 100 pieces.

· 2.5 × 2.5 cm × 2 × 2 m × 50 pieces.

· 2.5 cm × 5 cm × 3.4 mm × 1 × 2 m × 100 pieces.

Welded wire mesh (hot dip galvanized after welding):

· 6.3 mm × 6.3 mm × 0.55 mm × 1 m × 25 m × 300 pieces.

· 13 mm × 13 mm × 0.70 mm × 1 m × 25 m × 100 pieces.

· 19 mm × 19 mm × 1.35 mm × 1 m × 25 m × 100 pieces

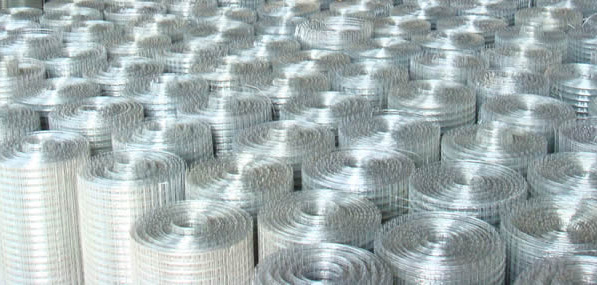

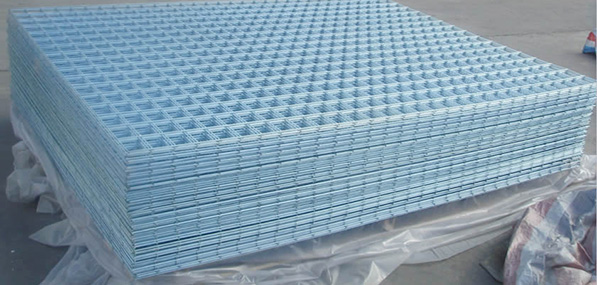

White zinc welded wire mesh rolls.Blue zinced welded wire mesh panels.
