Welded Mesh or Concertina Barbed Wire for Security Fencing

High security mesh fence covering welded mesh panel fencing 50 × 50 × 3.5 × 2.6m, concertina razor wire 450 mm diameter and 4 point barbs barbed wire.

High Security Mesh Fence: Welded Mesh Panel and Concertina Barbed Wire

High security mesh fence covering welded mesh panel fencing and concertina razor wire and barbed wire, there are two sets required, one is rear end (200,000 meters) and another front end mesh fence (486,000 meters). The requirement includes all the components of Fence. Full drawings as below pictures.

The fence includes the following components:

· Welded mesh: 50 × 50 × 3.5 mm, height is 2.6 meters.

· Post: Line post 3.4 meters at a distance of 3 meters, 73 mm OD × 5.1 mm thick.

· Y crank: on every line post 430 mm × 430 mm, with six lines of barbed wire and 1 row concertina tape on the Y Crank.

· Straining post: every 45 meters, 3.4 meters high, 73 mm OD × 5.1 mm thick.

· Intermediate post: every 3.0 meters, 3.4 meters high, 73 mm OD × 5.1 mm thick M.S plate.

· Corner post: 73 mm OD × 5.1 mm thick M.S pipe, placed at corners.

· End post: 73 mm OD × 5.1 mm thick M.S pipe, placed at ends.

· Bracing post: 2 bracing posts at every 45 meters, 3000 mm × 60 mm dia. and 3.9 mm thickness.

· Tie wire, 2.5 mm dia. galvanised tie wire.

· line wire, 3.5 mm dia. galvanised line wire - 3 rows.

· stirrup wire, 2.5 mm dia. galvanised stirrup wire.

· Cover plate 25 × 3 mm THK. M.S flat-cover plate.

· Barbed wire, 2.5 mm galvanized barbed wire 2 ply, 4 point barbs at every 100 m centers, 6 rows.

· Diagonal support, diameter 60.0 × 3.9 mm, thk. M.S pipe. -2 Nos for straining/corner & one for end post.

· Concertina razor wire, 450 mm diameter, galvanized concertina razor tape - MBBT, coil length 10 meters.

· Clips

Note: The offer per linear meter should include all the above components of fence.

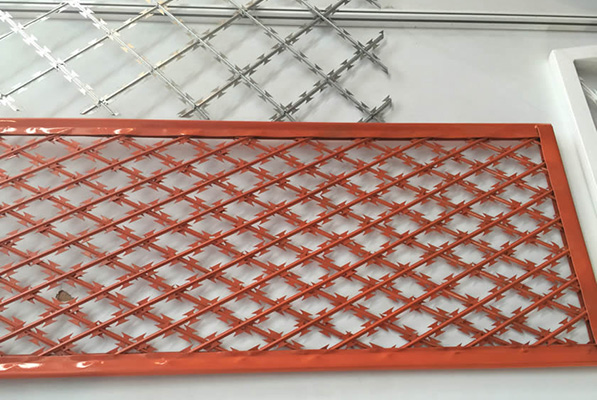

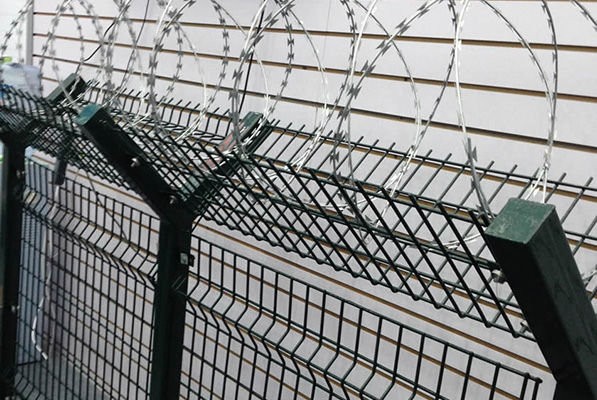

Security fencing: welded wire panels, Y posts and concertina wire.Welded razor wire mesh panels.
